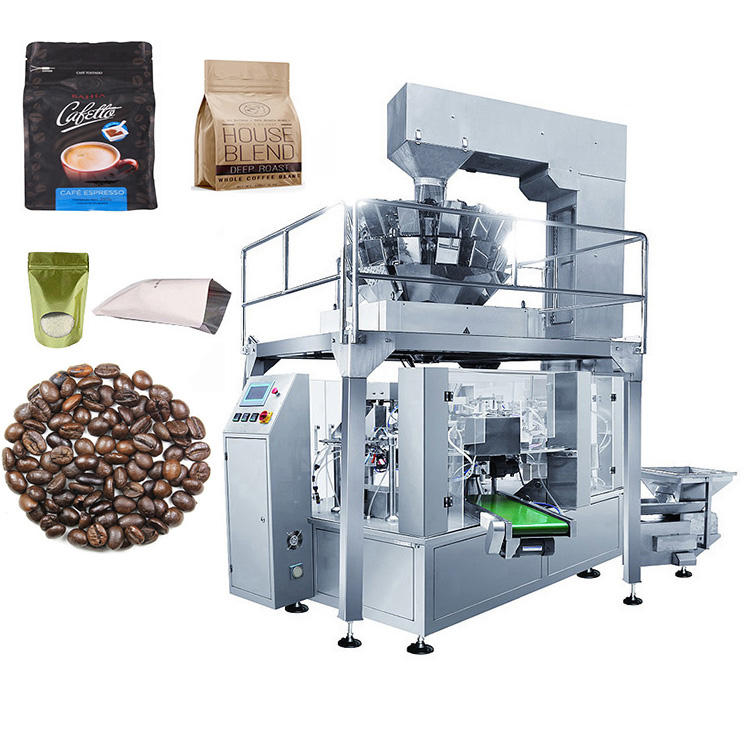

Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
  • Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
  • Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
  • Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans

Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans

起源の場所 中国
ブランド名 LTPM CHINA
証明 CE
モデル番号 Horizo​​ntop-Series
プロダクト細部
タイプ：:
梱包機
応用:
食品、毎日の化学物質など
自動等級::
自動
寸法（l*w*h）：:
1710*1505*1640mm
追加機能:
ハンギングホール、特別な形
パッキングの速度::
30-60bags/min
コントロール:
PLC+タッチスクリーン+インバーター
体重（kg）:
1600
ハイライト:

premade bag packing machine for coffee

,

automatic weigh fill seal packing machine

,

zip bag packing machine with warranty

支払及び船積みの言葉
最小注文数量
1セット
価格
negotiable
パッケージの詳細
木製のケース
受渡し時間
25
支払条件
L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力
25セット/月
製品の説明

Products Description

Main Features
1. Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
2. Easy to adjust: All working process in one station, more easily adjusting.
3. Frequency control: Speed can be adjusted by frequency conversion within the range.
4. High Automation: Unmanned in weighing and packing process, machine will show alarm automatically
when failure.
5. Pouch size change: 8 sets of gripper can be adjusted hand wheel at one time .
6. No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine will show alarm and stop when inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.

Work Process:
bag giving→date coding →bag opening →filling and vibrating 1→filling and vibrating2→heat sealing 1→heat sealing 2→forming and output





Data

Model HorizonTop-Series
Bag Size
Width:100-210mm,
Length:100-350mm
Filling Volume 5-2500g (Depending on type of products)
Capacity 30-60bags/min
(The speed depends on products and packaging material )
25-45bags/min (For zipper bag)
Package Accuracy Error≤±1%
Total Power 4 KW (220V-450V, 3PH, 50HZ/60HZ
Demension 2300×1500×1600
Weight 1700 KGS
Main Standard Accessories



1. Bag feeding system 2. PLC control system 3. Bag opening device 4. Filling system
5. Cleaning system 6. Hot
sealing control system 7. Output system

Packaging Style Display



Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans 0
